Description
Dissolution pH monitoring and controlling
is a system for monitoring and controlling the pH value when performing dissolution tests.
The system for simultaneous monitoring and controlling the pH value in 8 dissolution test vessels, when performing dissolution test, consists of a pH monitoring unit, a relay-output unit, and a software.
The pH monitoring unit consists of 8 high quality pH electrodes with extended cables. There is also possible to use the ion-selective electrodes in case if measurements of ionic concentration in an aqueous solution are required.
For mounting the electrodes on dissolution apparatus there exists two possibilities:

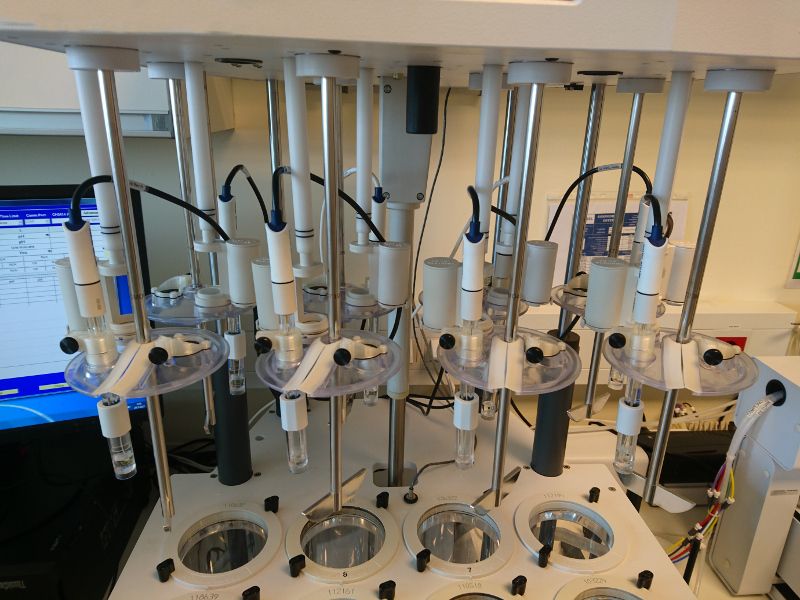

- electrodes are fixed on the covers of the vessels with special grippers and

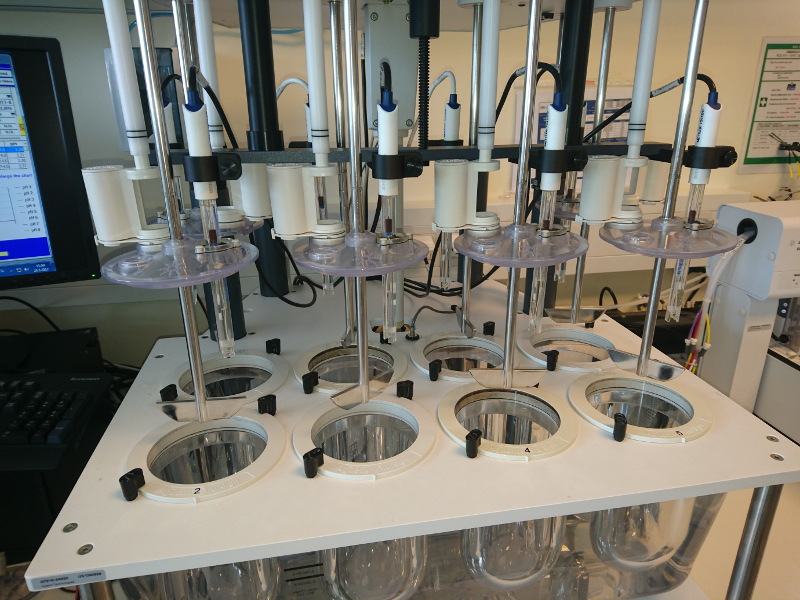

- electrodes are movable (could be lifted up and down) using sampling manifold.

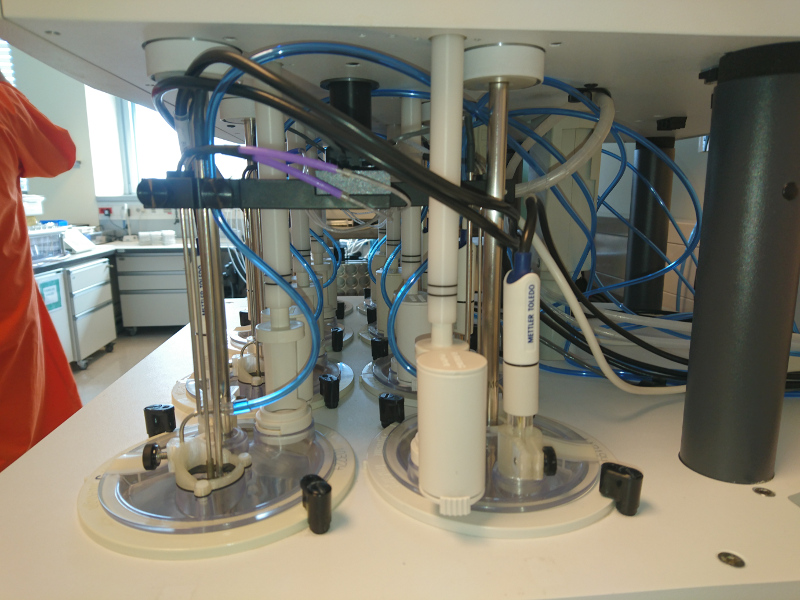

The relay-output unit serves for precise sparging of carbon dioxide or nitrogen in each vessel in order to control pH value and time-controlled by relays. Gas flow control valves are not the ON-OFF type but enable exact flow rate of the gas. Power relays are housed in a protection enclosure with removable lid.
The software for monitoring the process was developed by company EA Instruments Ltd, United Kingdom. Software runs on Microsoft Windows operating systems: Windows XP, Vista, Windows 7, 8, 10. The display of results is presented in tabular and graphic form. Measuring cycle and measuring time limit can be set in a wide range. Single and simultaneous pH calibration is possible. The control set up enables the individual settings for the pH set point and control parameters for each channel.
